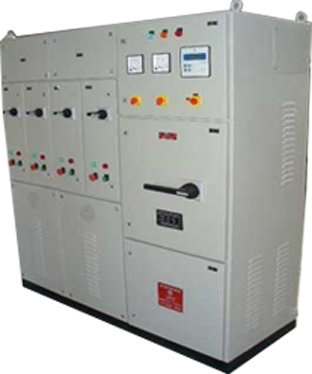

APFC PANEL

Faith Products are recommended by leading Consultants and Contractors

An automatic power factor correction unit is used to improve power factor. A power factor correction unit usually consists of a number of capacitors that are switched by means of contactors. These contactors are controlled by a regulator that measures power factor in an electrical network. To be able to measure power factor, the regulator uses a current transformer to measure the current in one phase.

Depending on the load and power factor of the network, the power factor controller will switch the necessary blocks of capacitors in steps to make sure the power factor stays above a selected value (usually demanded by the energy supplier),

Capacitors EPCOS from SIEMENS / L & T Meher

Phi cap AC Capacitors is a reliable MPP-Delta connected.

• Three-phase 440V, 50Hz,
• Inrush current 100*IN (ND)
• Temp. (-25 to +55 ) degree C.
• Minimum 1 / 2.1 or 2.5 KVAr onwards to 3,4,5,7.5,10,12.5,15,
• 20 KVAr Stages can be designed based upon Load capacity.
• Minimizing the line loses, thus saving power consumption.
• Longer life for all electrical circuits, cables, and so on.

APFC or Automatic Power Factor Control Panels

APFC or Automatic Power Factor Control Panels are mainly used for the improvement of Power Factor. We offer wide range of standard and customized APFC panels. Modern power networks cater to a wide variety of electrical and power electronics loads, which create a varying power demand on the supply system

Automatic power factor correction unit. Abstract: Power factor losses represent a significant factor of power losses in both industrial and domestic units. ... This paper aims to present an indigenous technique and method which could be used for static power factor correction.

Automatic Power Factor Control (APFC) Panels

APFC or Automatic Power Factor Control Panels are mainly used for the improvement of Power Factor. Power Factor can be explained as ratio of active power to apparent power and it is a key factor in measuring electrical consumption. Everyone knows that how costly electricity has become in present time. Therefore it becomes utmost important to cut down on electrical consumption for reducing expenditure.

APFC Panels come real handy in the achievement of this purpose Use of these control panels becomes indispensable in those industries where electrical installations are meant to supply to large electrical load.

A dip in Power Factor can attract operational losses and a penalty from electricity board, responsible for electricity supply.

We offer wide range of standard and customized APFC panels and are competitive in the industry.

APFC or Automatic Power Factor Control Panels are mainly used for the improvement of Power Factor. Power Factor can be explained as ratio of active power to apparent power and it is a key factor in measuring electrical consumption. Everyone knows that how costly electricity has become in present time. Therefore it becomes utmost important to cut down on electrical consumption for reducing expenditure.

APFC Panels come real handy in the achievement of this purpose Use of these control panels becomes indispensable in those industries where electrical installations are meant to supply to large electrical load. A dip in Power Factor can attract operational losses and a penalty from electricity board, responsible for electricity supply.

APFC Panels can effectively and automatically manage quickly changing and scattered loads along with the retention of high Power Factor. We are renowned manufacturers of APFC Panels symbolized with quality and reliability. These are available in different current ratings to cater to distinct applications.

The main features of our control panels are:

• Maintains high Power Factor constantly
• High efficiency
• In-built independent fuses
• Protection from excess power in the system.
• Prevents leading Power Factor in low load conditions
• Clearly marked buttons and indicators
• Minimizes harmonic current
• Easy to use
• Corrosion-resistant
• Long lasting
• Electrical insulation
• Protects electrical equipments

These APFC Panels are put to use in the following:

• Windmills
• Monitoring current harmonics
• Process controllers
• Micro processors
• LT & HT factories
• Electrical installations
• Line voltage analysis
